  • HeatSnob Temperature Data Logger Thermocouple and Roast Monitor USB software

    HeatSnob - Accurate Temperature Monitoring

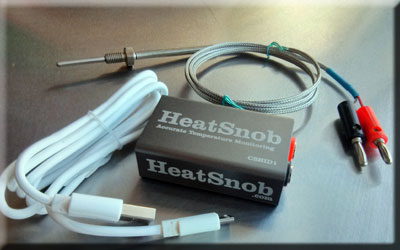

    HeatSnob image













    HeatSnob works with CoffeeSnobs Roast Monitor software and Roast Monitor will work with a mixture of HeatSnob units and the previous meters. You can run up to 9 temperature monitors although 2 or 3 is enough for most people. Bean temperature, air temperature and exhaust temperature are the 3 most common areas to monitor but you could also add cooling tray or ambient temperature if you can use that data too.


    This meter and software has been installed on 1000s of different PCs all over the planet and everyone I know that run it are getting much more consistent results using this logging and replicating.


    Tested as working well on:
    • Win98SE
    • Windows XP Pro
    • Windows XP Home
    • Vista Business
    • Windows 7 (32bit)
    • Windows 7 (64 bit)
    • Windows 8
    • Windows 10


    Mac? We have been told that it works fine using Parallels or virtualbox for Mac.
    (We still suggest you are far better off getting a low-end PC which will run this fine)

    Not working well on:
    • VMware (suffers from disconnections during the roast)
    • Linux. Sorry, but I doubt it will run on Linux until Sun Java gets a working USB library for Linux, Mac and Windows.


    You can scrounge an old PC for next to nothing these days. *The hardware requirements of the software is very low and it will run on just about any Windows PC with a USB port. *Finding an old free notebook (with 1024px resolution) is often a great way to use this roasting tool.

    This is a true plug and play hardware device, Windows automagically loads its own driver for it and it appears in Device Manager as a HID without mucking about with serial device driver files and having to know baud rates and com ports.


    Where to buy?

    The HeatSnob USB Temperature Datalogger is available in BeanBay "Other Stuff" now.
    BeanBay » Coffee Roasters - Coffee Brewers » HeatSnob Temperature Data Logger

    Software Download

    You can get the Roast Monitor software V2.64 (JUNE 2020)
    (RoastMonitor.exe - 2668KB) for this meter from:

    https://coffeesnobs.com.au/RoastMonitor/Roastmonitor.exe

    or if your browser or antivirus complains and you need a ZIP file then use:
    https://coffeesnobs.com.au/RoastMonitor/Roastmonitor.zip

    After downloading, run the installer and follow the simple prompts.

    The installer will:
    * Place a Roast Monitor icon on your desktop
    * Install into \Program Files (x86)\CoffeeSnobs
    * Saved profiles, logs and preferences will be under Documents/CoffeeSnobs

    This will make future updates cleaner and easier, leaving the previous profiles and settings and only updating the program.

    Java
    Roast Monitor uses Java for the display, if you don't have Java then you need to download it from Oracle (free download):
    Download Free Java Software -- You should select the "Windows Offline" version, not the "Windows Offline 64bit"

    Roast Monitor User Guide

    This excellent user guide was put together by CSr GrahamK for the older meter version but should help new users and existing ones get up to speed with the features pretty quickly.
    450Kb Word Doc.
    https://coffeesnobs.com.au/RoastMonit...User-Guide.zip
    Thanks Graham* 8-)

    Revision Notes:
    Detailed revision notes are included in the download.

    Troubleshooting
    • Nearly every problem reported in the last eight years was fixed by downloading and installing current versions of Java
    • Other troubleshooting tips are in the thread below.
    Artisan Software
    To use HeatSnob with Artisan software please see this thread


    Behmor Template
    A template for mounting the stainless thermocouple in the Behmor roaster is below.


    Outside of Australia?
    HeatSnob is available to export to other countries without GST via HeatSnob.com
    (Australian orders are via BeanBay and include GST and local freight)


    This would be a great time to remind people that this software is written for me to use with the commercial roaster at the Snobbery and it has been working perfectly for up to 50 roasts per week, every week of the year for years. While I'm happy to share it with CSrs for free and welcome new ideas please understand that if I cannot see a benefit in a requested feature or think it would hinder my usage then I won't want it in the software.

    Please Note: we will clean this thread from time to time and update any new information in this first post to avoid confusion when a new version is released.

    Screenshot using two HeatSnobs:
    BLACK line is the bean temperature, GREY line is the air temperature, RED line is the Heat plot percentage, BLUE line is degrees C/minute
    You can configure the shortcut buttons to plot what you want (like Blah Blah) or type in the Comments field to write on the graph.




    Note: Current probes are 4mm wide so drill a 4mm hole all the way through and a 5mm hole on the outer cover.
    Last edited by Andy; 11 June 2020, 01:17 PM.

  • #2
    First Use

    When you plug-in the Heatsnob the first time (or into a different USB port) Windows will try and find a "plug 'n pray" driver for it.

    You should see the installation icon the bottom right of the task bar, opening it will show the following.

    1: It will try and get an updated driver for "HID Thermocouple" from Windows Update, you can wait for the time-out or better still, click on "skip obtaining driver software from Windows Update"

    Because Windows never trusts you, it will also ask you to confirm the click. Answer Yes.

    It will then go ahead and install the driver you already had on your machine.
    You can click Close when it's done.

    Comment


    • #3
      Those with a keen eye might have noticed in my above picture that I was running version 2.61
      I've been running that live on my roaster for more than a month and can't find any problems so it's now gone live and the download links in the first post will be for version 2.61 now.

      Version 2.61 is our first multi lingual version.

      We have lots of people running this all over the world and while they have learnt our english roasting words, they shouldn't really have to. Now they can set their own words in a simple text file called Translations.txt



      Extract from ReleaseNotes:
      Revision 2.61

      1. User-customisable text

      All text in the main window can now be customised by the user.
      On the first run of RoastMonitor, the file "Translations.txt" is created in Documents\CoffeeSnobs. This file contains a line of the form "English text = English text" for each text element in the main window. The text to the left of the equals sign should not be altered, but text to the right can be modified as required. If modifying this file, you should be aware that this file is Unicode-encoded.
      Text on buttons can include some HTML tags. A text character surrounded by <u> and </u> will be set as a keyboard shortcut for that button; <br> will force following text to a new line.
      For consistency, the previous customisation of some buttons via Preferences.txt is no longer supported.

      ---------------------------------------------------------------------------------
      If you want to see translation in action, replace Documents/CoffeeSnobs/Translations.txt with the below spanish content. When you've finished playing you can delete Translations.txt and a pristine version will get created next time you run.
      ---------------------------------------------------------------------------------

      Code:
      REVISION = 2.61
      Actual = Real
      Air = Aire
      Alerts = Alertas
      All meters = Todos los metros
      <u>C</u>lose = <u>C</u>erca
      Comments = Comentarios
      <u>F</u>irst<br>crack = <u>P</u>rimera<br>grieta
      <u>G</u>o = <u>I</u>r
      Heat = Calor
      <u>L</u>oad = C<u>a</u>rga
      Load = Carga
      Load RML program = Cargar programa RML
      Load template = Load modelo
      Max = Máximo
      Min = Mínimo
      N/A = N/A
      Offset = Compensar
      per min = por minuto
      R<u>e</u>set = R<u>e</u>iniciar
      <u>R</u>olling<br>first crack = <u>R</u>odando<br>primera grieta
      R<u>M</u>L = RM<u>L</u>
      R<u>o</u>lling<br>second crack = R<u>o</u>dando<br>segunda grieta
      Range = Distancia
      RML programs = Programas rml
      <u>S</u>ave CSV = <u>G</u>uardar CSV
      Save = Guardar
      Save <u>J</u>PG = Guardar <u>J</u>PG
      Save image as = Guardar imagen como
      Save profile as = Guardar perfil como
      Saved image as  = imagen guardada como
      Saved profile as  = perfil guardado como
      Secon<u>d</u><br>crack = <u>S</u>egunda<br>grieta
      Sho<u>w</u> Log = Mos<u>t</u>rar Registro
      Sto<u>p</u> = <u>D</u>etener
      Target = Objetivo
      Temp. = Temp.
      <u>T</u>emplate = <u>M</u>odelo
      Temperature = Temperatura
      Time = Hora
      Time since = Tiempo desde
      Time since load = Tiempo desde la carga
      <u>U</u>nload<br>(Cool) = Descargar<br>(<u>F</u>rio)
      I'm happy to keep a library of translation files either here on CoffeeSnobs, on HeatSnob.com or in the software package so if you make one you like, let me know.

      Comment


      • #4
        FAQ
        Some previous questions and answers in the order they were asked:



        How do I change to Fahrenheit?

        Edit the settings file:
        Documents/CoffeeSnobs/Preferences.txt

        Code:
        # Temperature scale - either Celsius or Fahrenheit.
        temperatureScale=Celsius
        --------------

        Is there a way to manually capture other values

        The comments field allows you to type something in, it gets tagged on the primary plot line and also added to the CSV file so you can see/use it later.

        --------------

        Is there a way of loading the csv file with the colours active?

        Yep, that's covered in the Preferences.txt file ( My Documents/CoffeeSnobs/Prefferences.txt )


        Code:
        # Colour of template display (RGB 0,0,0 to 255,255,255).
        templateColours=0,128,0 0,100,0 0,128,0 0,128,0 0,128,0 0,128,0 0,128,0 0,128,0 0,128,0
        If you want it to be blue then change the first set of RGB number to 0,0,255 eg:

        Code:
        # Colour of template display (RGB 0,0,0 to 255,255,255).
        templateColours=0,0,255 0,100,0 0,128,0 0,128,0 0,128,0 0,128,0 0,128,0 0,128,0 0,128,0

        ------------------

        Are the event buttons changeable?

        Yes they certainly are.

        Edit this section in the preferences.txt file to have the 5 buttons become a shortcut for whatever you like.
        (my documents/coffeesnobs/preferences.txt)

        Code:
        # Text for tag buttons.
        tagButton1=First<br>Crack
        tagButton2=Rolling<br>First
        tagButton3=Open<br>Air
        tagButton4=Close<b>Air</b>
        tagButton5=Drop<br>Beans
        -------------------

        Error message:
        Thermocouple shorted to power or Thermocouple shorted to ground

        Every single instance of this error in the last 4 years has been a problem with the devices connected to the HeatSnob, not the HeatSnob itself.

        1: Dodgy laptop power supplies - try running on battery and see if the problem goes away.
        2: Dodgy roaster wiring - fix it!
        3: Something dodgy on the same electrical circuit as the roaster or the laptop - any device misbehaving and leaking voltage to ground.

        Clothes dryer, air-con, compressor, pop-up toaster, mobile phone, fluro-lights and even a vibrating exercise platform have been found to give off voltage on the same circuit. If you can't find the suss device in your building, then try insulating the probe from the roaster and see if it improves.

        -------------------

        The software adds the temp figure on the line every now and then, is there a way to turn this function off?

        Roast smoother!
        If your temperature drops fast it will plot a blue temperature, if it rises fast it will plot a red one.
        It's possible to roast with one temperature when you drop the beans in, one at the turn and one when you drop the beans out.

        --------------------

        Can you change the graph scale?

        Yes, edit in notepad:
        \Documents\CoffeeSnobs\preferences.txt
        The temperature scale (vertical) and the time scale (horizontal) can both be changed easily.

        Code:
        # Temperatures (vertical scale) in degrees.
        minTemperature=0
        maxTemperature=300


        # Horizontal scale in minutes.
        duration=30
        ------------------

        What size probe suits the Behmor Roaster?

        The 25mm will work fine and will just protrude into the chamber but most people use the 100mm one to get it further into the roast chamber.

        The Behmor template in the first post here shows a 3mm hole through and a 4mm hole in the cover, this was true for the older 3mm probes. If you have a more recent probe it's likely to be a 4mm wide probe and will require a 4mm hole through and 5mm hole in the cover.

        -------------------

        Where to install the probe in a Corretto?

        See: HeatSnob Chat for a great picture and discussion.

        -------------------

        Where to install on my xxxx roaster?

        Bean Mass:
        On my commercial roaster that's near the sight glass where the beans are moving slowest and have better contact with the tip of the thermocouple.

        Air Temperature:
        On my commercial roaster under the drum shaft is a good place to measure heat without bean contact.

        Exhaust:
        Anywhere, the temperature measured here will be specific to your setup but will still show you if you are running hotter/cooler than your target.

        ------------------

        Where to install the probe on a Hottop?

        The 100mm probe has been installed in the back end of the Hottop drum before.

        ------------------

        How many HeatSnobs can I run?

        The software has a limitation of 9 HeatSnobs which should be plenty and I look forward to knowing what setup needs more than that!
        Each HeatSnob needs its own USB port on the computer and they will run fine on a USB hub if needed.

        ------------------

        Can I run the Roast Monitor software without a HeatSnob attached?

        No, the software needs to see a HeatSnob plugged in before it opens.

        ------------------

        When I double click the RoastMonitor icon nothing happens

        1: Make sure you have installed Java (see post #1 above) and restarted your machine.

        2: Your windows file association for .JAR might be wrong. WinRar can take ownership of .JAR files and cause this,
        Manually fix the association in windows or download and run the excellent little file JARFIX.EXE to fix it.


        ------------------

        Java - EXCEPTION_ACCESS_VIOLATION (0xc0000005)

        Only ever seen twice and was fixed with a simple uninstall and reinstall of Java.
        The best Java version to use is called "Windows Offline" from https://java.com/en/download/manual.jsp
        Click image for larger version

Name:	java.jpg
Views:	1191
Size:	28.4 KB
ID:	848869
        ------------------


        If you have another problem post details here and we'll troubleshoot it ASAP.
        We have never had a Windows machine this doesn't work on.

        Comment


        • #5
          (Thread clean-up, previous troubleshooting has been removed and the FAQ in post #4 above has been updated to keep this thread readable.)

          Version 2.64 available now.

          Comment


          • #6
            Is there a way to change the range of the RoR curve? So, instead of showing a 1:1 ratio it had a 1:3 or 1:4 ratio so that it’s easier to see changes on the RoR curve? I don’t mind if it overlaps with the bean temperature curve, just would like to be able to see RoR changes a bit easier.
            I’m using Roast Monitor on parallels.

            Comment


            • Andy
              Andy commented
              Editing a comment
              No option currently. That option might get added one day though.

              C/min is shown large and live which is when you need it, the plot is only used by us as rough reference later.

          • #7
            I use the plot heavily during roasts to help me anticipate what’s about to happen in a roast, it’s also great for identifying patterns and adjusting roast parameters etc. it would be a really cool feature to be able to edit the graphing ratio. I’d love to see it in a future iteration one day!!

            Comment


            • #8
              Hi can someone please give me a link to software so I can plug my multi meter in and start using on my new roaster ? I'm new to this 5kg roaster and was told there is a free download on here ? Thanks

              Comment


              • Andy
                Andy commented
                Editing a comment
                @buzztruck
                Please read the first post above!

            • #9
              This datalogger looks interesting and the documentation is terrific GrahamK . But a simple question about the "HeatSnob Temperature Data Logger and the various thermocouples.

              Can the data logger be powered by a battery pack USB and will it record temperatures and store the data internally for later download?
              Thanks

              Comment


              • Andy
                Andy commented
                Editing a comment
                allinone
                Nup, it wasn't designed as an off-line datalogger (they already exist for the food safety industry)

                The HeatSnob was built for live, accurate and fast data while you are roasting.

            • #10
              I down loaded the profile thing tried both but I only get some script not the program ?

              Comment


              • Andy
                Andy commented
                Editing a comment
                Sorry, my telepathy hat just isn't working from inside my shed, I really can't guess what you are seeing but there is a lot of troubleshooting in the posts above that should help.

                Or maybe you should have a chat with the person that told you the software for your roaster is here? They should be able to guide you.

            • #11
              I still can't get this to work with my multimeter even my computer bloke has no idea or do I have to buy the $80 monitor ? Thanks dale

              Comment


              • Andy
                Andy commented
                Editing a comment
                What multimeter is it?
                (please be specific)

            • #12
              Originally posted by Buzztruck View Post
              I down loaded the profile thing tried both but I only get some script not the program ?
              The program notes and manual are terrific but some minor details are missing. PM me or contact me for specific installation assistance, as mine installed with some easy scripting changes. But I use a Windows laptop and not a multimeter as my multi meter is not a USB type.

              Comment


              • #13
                How can I buy 1 of these monitors ???

                Comment


                • Andy
                  Andy commented
                  Editing a comment
                  It's a CoffeeSnobs member secret, you have to know the special handshake.

                  There is also a link in the first post of this thread hidden under "Where to buy?"
              Working...
              X
