  • #16
    Re: Brasilia Portofino 2 Group

    is that thing holding the plastic drain sump  on made of metal or plastic?

    its not just a "push fit" plug sort of thing is it?

    i will go look at mine now

    went and looked mine are all screwed on etc different to yours

    Comment


    • #17
      Re: Brasilia Portofino 2 Group

      Thanks KK - appreciate the help!

      Maheel - I think its plastic. It may be a push fit plug but I have fiddled to no avail. Ill have another go tonight

      Cheers,
      Ben

      Comment


      • #18
        Re: Brasilia Portofino 2 Group

        Hi guys.
        Just wanted to clarify a few things:

        1. What is the best method to clean the frame? (will a wire brush strip any coatings)
        2. How do I remove the pump from the motor (clamp is loosened)

        Cheers,
        Ben

        Comment


        • #19
          Re: Brasilia Portofino 2 Group

          wire brush will scratch the paint IMO and allow future rust.
          Hot soapy water then in the sun to dry for a few days (or on top of some heat source like heater / hotwater system / oven ???) to dry out water
          I would avoid harsh cleaners to start

          does it have surface rust or just coffee stains, if rust better of repainting with proper clean and sand.

          My pump just needed to
          1 unscrew that radiator looking silver clamp and remove it out of the way.
          2 jiggle to pump slides of may need a bit of a light tap / pry NOT MUCH BUT!!

          it has a "keyway" set up, motor is female pump is male "spade" shaped
          see pic
          http://www.coffeeparts.com/misc/motor-pumps.html

          Comment


          • #20
            Re: Brasilia Portofino 2 Group

            Maheel,

            Doesnt seem to be any apparent rust - mostly coffee crud. Ill have a crack with your approach and see how it goes.

            Thanks for the advice with the pump!

            Cheers,
            Ben

            Comment


            • #21
              Re: Brasilia Portofino 2 Group

              Well, we have made progress!

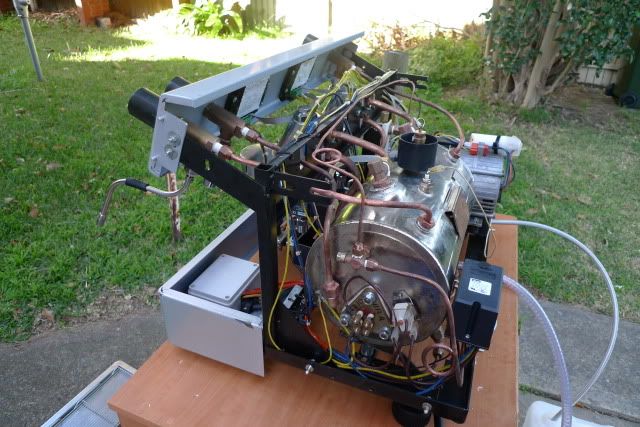

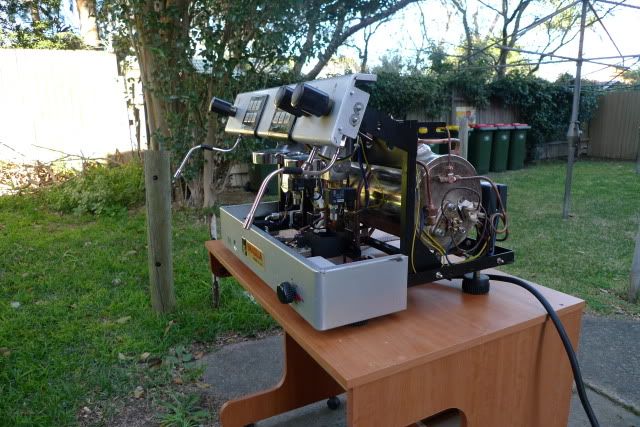

              Things slowly got put back together, and after a few rolls of thread tape and a bit of a jigsaw puzzle, Lazarus was back together! Unfortunately, the cleaning process wasnt as successful as Sootys, it has still come up ok.
              So, I switched it on and all was ok. 1 leak which was fixed in an instant. But then, as soon as the boiler reached pressure - we had a mega leak. As I mentioned earlier, I had to get a copper pipe made up. Now, I will name and shame this company - Pirtek did a HORRIBLE job. I complained at the time of pickup and managed to get a significant discount because of the poor quality of the job. I thought I could get away with it however, because it seemed mostly aesthetic - how horribly wrong I was. So, I will endeavour to get the pipe replaced ASAP and hopefully well be in business!

              I have one small problem - the valve for the water wand is squealing on opening and I am guessing that its simply a lack of grease. But I cant open the body of the valve to re-grease it. So, what do I do? Can I still manage to get some form of lubrication in there? Any ideas?

              Cheers,
              Ben

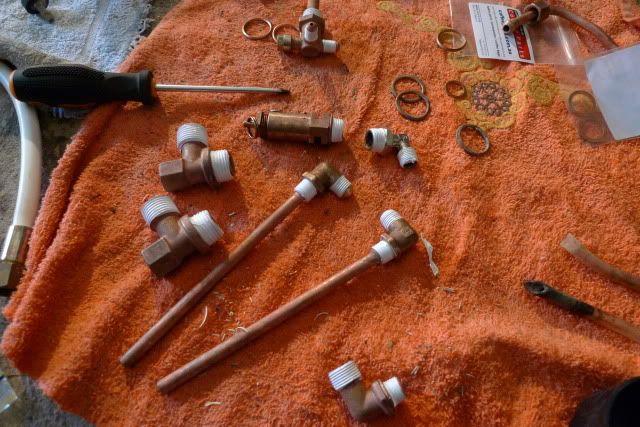

              Thread Tape


              Jigsaw 1

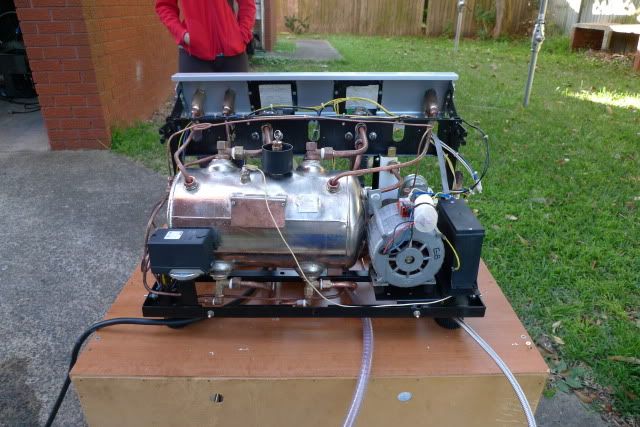

              Boilers on


              Naked Lazarus








              Comment


              • #22
                Re: Brasilia Portofino 2 Group

                I cant see any images

                Comment


                • #23
                  Re: Brasilia Portofino 2 Group

                  Umm, I dont know what to suggest. They are coming up for me and for someone else I forwarded the link to.

                  Is any one else having trouble?

                  Comment


                  • #24
                    Re: Brasilia Portofino 2 Group

                    I can see the photos fine - must be something sullys end

                    Comment


                    • #25
                      Re: Brasilia Portofino 2 Group

                      Originally posted by 272F20262E7471450 link=1248526256/22#22 date=1251072045
                      Umm, I dont know what to suggest. They are coming up for me and for someone else I forwarded the link to.

                      Is any one else having trouble?
                      They are working fine for me.

                      Comment


                      • #26
                        Re: Brasilia Portofino 2 Group

                        Thanks guys!

                        Comment


                        • #27
                          Re: Brasilia Portofino 2 Group

                          Regarding the replacement copper pipe Ben,

                          Id give the job to a decent plumber/gas-fitter or a refrigeration mechanic. These guys work with this stuff all the time and should be able to do a good job for you

                          Mal.

                          Comment


                          • #28
                            Re: Brasilia Portofino 2 Group

                            Thanks for the advice Mal.
                            In hind sight, I probably should have done exactly what you said. Today I took the pipes back to Pirtek in the hope that all will be fixed and we will be up and running again soon.

                            Hope everyone is enjoying the photos.
                            Cheers,
                            Ben

                            Comment


                            • #29
                              Re: Brasilia Portofino 2 Group

                              The groupheads look much better shiny than they do black, Ben! 8-)

                              Its looking a treat...cant wait to hear how you go with it once its up and running...

                              The crud you got out of the boiler was nothing compared to what came out of ours after the element blew up... Consider yourself lucky there! Though, I am wondering what the black crud is. At least ours was just lime scale.

                              Comment


                              • #30
                                Re: Brasilia Portofino 2 Group

                                Originally posted by 3424282833261820262B470 link=1248526256/28#28 date=1251102544
                                The groupheads look much better shiny than they do black, Ben!  8-)

                                Its looking a treat...cant wait to hear how you go with it once its up and running...

                                The crud you got out of the boiler was nothing compared to what came out of ours after the element blew up... Consider yourself lucky there! Though, I am wondering what the black crud is. At least ours was just lime scale.
                                Thanks for the excitement scoots! Yer I cant wait to see it up and running - and hopefully it isnt too far away.

                                I cant explain the black crud either - obviously very different shade to lime scale, but lets just hope its all gone. Actually the water that I did manage to draw through the group heads looked as clean as a whistle.

                                Hope all is well up north!
                                Cheers,
                                Ben

                                Comment
