  • #16
    Re: EM6910 pressure gauge stopped working...bitter coffee!

    I just tossed in 2 thin cardboard spacers. Handle is nice and tight at about 5:30.....no joy...no action at the dial and still seem like no pressure building up.

    Comment


    • #17
      Re: EM6910 pressure gauge stopped working...bitter coffee!

      but you say that it still flows ok with coffee in the basket? That would mean its not the pump, right?

      Comment


      • #18
        Re: EM6910 pressure gauge stopped working...bitter coffee!

        Originally posted by 2E223137312A3B430 link=1249003655/15#15 date=1249031696
        I just tossed in 2 thin cardboard spacers. Handle is nice and tight at about 5:30.....no joy...no action at the dial and still seem like no pressure building up.
        If the Seal stuffed, then spacer will not help.

        Have a look and when you flex it if the groves are actually split... Then as I said "Seal stuffed, then spacer will not help".

        Comment


        • #19
          Re: EM6910 pressure gauge stopped working...bitter coffee!

          OT Reply...

          AM if you still havent started your drawers by the time we get up there in January, Pete build roller drawers for our Nissan Terrano II, including carpeting and locks (look like professional jobs!), so Im sure he could give you a hand with it...

          Otherwise, not going to contribute to this thread - a handyman, I aint! But it is really interesting to see the Sunny all opened up.

          Comment


          • #20
            Re: EM6910 pressure gauge stopped working...bitter coffee!

            OTR is here http://coffeesnobs.com.au/YaBB.pl?num=1249083767/0#0

            Comment


            • #21
              Re: EM6910 pressure gauge stopped working...bitter coffee!

              OK Ive tested a few things. Disconnected the pressure gauge and introduced a little compressed air to it, that works. So that means Im loosing pressure somewhere.

              Ive inspected the GH seal thoroughly and cannot see any splits, cracks etc. Adding some cardboard spacer improved the lock off position but made no difference to pressure.

              No I am thinking it could be the 3-way valve?


              this article is interesting and could be what has happened to me.....I never backflushed my machine once!

              http://home.surewest.net/frcn/Coffee/3way/intro.html
              Can anyone direct me to where the 3 way valve is? (thats apparently not a true 3 way valve)

              Comment


              • #22
                Re: EM6910 pressure gauge stopped working...bitter coffee!

                Can someone confirm or deny these items?

                I could work out exactly what they are, but I really want to minimise how much I pull apart.

                I need to get this working, I dusted off the old Cafe Roma and its just wrong in so many ways compared to the 6910.


                Comment


                • #23
                  Re: EM6910 pressure gauge stopped working...bitter coffee!

                  Originally posted by 69657670766D7C040 link=1249003655/20#20 date=1249086277
                  OK Ive tested a few things. Disconnected the pressure gauge and introduced a little compressed air to it, that works. So that means Im loosing pressure somewhere.

                  Ive inspected the GH seal thoroughly and cannot see any splits, cracks etc. Adding some cardboard spacer improved the lock off position but made no difference to pressure.

                  No I am thinking it could be the 3-way valve?


                  this article is interesting and could be what has happened to me.....I never backflushed my machine once!

                  http://home.surewest.net/frcn/Coffee/3way/intro.html
                  Can anyone direct me to where the 3 way valve is? (thats apparently not a true 3 way valve)
                  If you have never replaced your seal...  It will be dead...  Even at 6 months I have not seen one that is not well on the way out...  With teh seal out flex it and look at the groves...  They are just shallow groves... If they are deep etc then teh seal is stuffed...  Will send a pic once I get home...  At the Vs at present haveing a coffee :-)  Cupping about to start.

                  Your could have also had the collar come away from teh head...  Check teh head screws... Note you will need teh top off to do this...

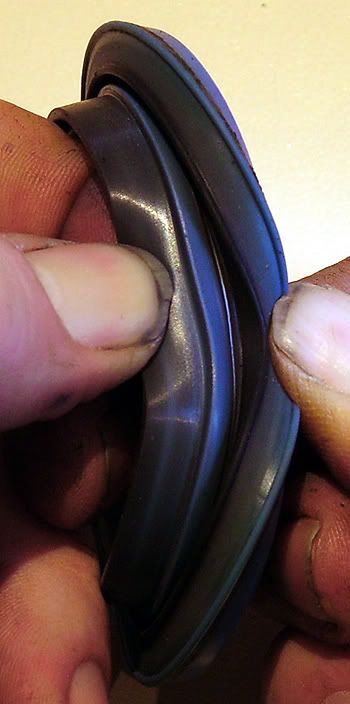

                  Here is a pic of a NEW one and one I pulled from another machine... My grubby finger is attempting to point / demonstrate the deep cut into the seal, while the new one is in the background.



                  NOTE: Some one tried to use a sealant on the old one, but they did not understand the physics and teh way the shower head and screen fit into the seal....

                  Trust this helps.


                  Comment


                  • #24
                    Re: EM6910 pressure gauge stopped working...bitter coffee!

                    Originally posted by 527D7476615E727D7274767E767D67130 link=1249003655/22#22 date=1249087775
                    If you have never replaced your seal...It will be dead...Even at 6 months I have not seen one that is not well on the way out...With teh seal out flex it and look at the groves...They are just shallow groves... If they are deep etc then teh seal is stuffed...Will send a pic once I get home...At the Vs at present haveing a coffee SmileyCupping about to start.

                    Your could have also had the collar come away from teh head...Check teh head screws... Note you will need teh top off to do this...


                    Here is a pic of a NEW one and one I pulled from another machine... My grubby finger is attempting to point / demonstrate the deep cut into the seal, while the new one is in the background.

                    ...

                    NOTE: Some one tried to use a sealant on the old one, but they did not understand the physics and teh way the shower head and screen fit into the seal....

                    Trust this helps.


                    Back to top

                    thanks for the pics. Collar bolts are all tight.

                    I tested the electromagnetic solenoid on the pressure relief and that seems to be working fine. I think that leaves me with 1 of 2 possibilities. Either the pump cant pump the pressure anymore, or like you have suggested I simply need a new GH seal.
                    With coffee in the group handle as per normal it pumps plenty of water straight through it, its like it simply cant hold the pressure.

                    Im hoping all i need is the seal and a couple of good back flushs.

                    Can I get the tablets, anti-calc thingo, and a GH seal from here?
                    http://www.servicesphere.com.au/gen.php?id=59



                    Comment


                    • #25
                      Re: EM6910 pressure gauge stopped working...bitter coffee!

                      Originally posted by 6F637076706B7A020 link=1249003655/23#23 date=1249101505
                      Originally posted by 527D7476615E727D7274767E767D67130 link=1249003655/22#22 date=1249087775
                      If you have never replaced your seal...It will be dead...Even at 6 months I have not seen one that is not well on the way out...With teh seal out flex it and look at the groves...They are just shallow groves... If they are deep etc then teh seal is stuffed...Will send a pic once I get home...At the Vs at present haveing a coffee SmileyCupping about to start.

                      Your could have also had the collar come away from teh head...Check teh head screws... Note you will need teh top off to do this...


                      Here is a pic of a NEW one and one I pulled from another machine... My grubby finger is attempting to point / demonstrate the deep cut into the seal, while the new one is in the background.

                      ...

                      NOTE: Some one tried to use a sealant on the old one, but they did not understand the physics and teh way the shower head and screen fit into the seal....

                      Trust this helps.


                      Back to top

                      thanks for the pics. Collar bolts are all tight.

                      I tested the electromagnetic solenoid on the pressure relief and that seems to be working fine. I think that leaves me with 1 of 2 possibilities. Either the pump cant pump the pressure anymore, or like you have suggested I simply need a new GH seal.
                      With coffee in the group handle as per normal it pumps plenty of water straight through it, its like it simply cant hold the pressure.

                      Im hoping all i need is the seal and a couple of good back flushs.

                      Can I get the tablets, anti-calc thingo, and a GH seal from here?
                      http://www.servicesphere.com.au/gen.php?id=59

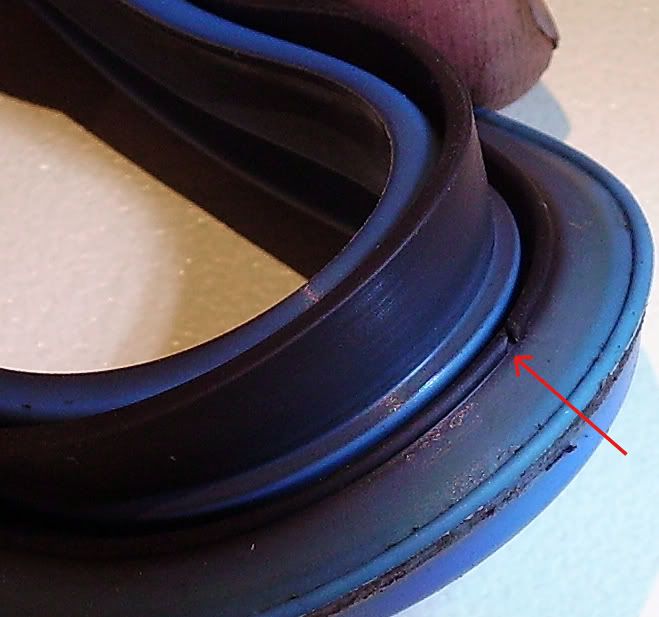

                      The nick is interesting, but the depth of the main grove is significant...  Much deeper than teh new one I have on my desk.


                      1:  For general back flushing cafetto is good - See Sponsor

                      2:  For descaling you could use any number of products...

                      But I stayed with teh SB tabs...  NOT CHEEP.  6 Big ones...  In a pack.  But if your using filtered water.. Then that is about 2 to 3 years so more than enough.  Both types as per the manual can be found on the evil bay auction site at times..

                      3: Seal - Follow up with ya nominated SB service centre.

                      I can only recommend Sparkies  @ Albion in Brisbane (details are around - Search) and I know a few others have got stuff from them and had it posted off.

                      If in doubt... Call SB to find out who is the closest to you.

                      So what have you learnt to date ?

                      Maintenance is good and ones self Acknowledgement  Regular  maintenance is even better for you and the machine  ;D

                      Note: Another little Jem I tried to live by at work... But not many would have it.

                      “Mistakes will be made,” he wrote “but if a person is essentially right, the mistakes he or she makes; is not as serious in the long run, as the mistakes management will  make if its dictatorial and undertakes to tell those under its authority: exactly how they must do their job”

                      (William McKnight, 1941, President 3M, Management philosophy that helped make risk-taking and innovation possible.)

                      Comment


                      • #26
                        Re: EM6910 pressure gauge stopped working...bitter coffee!


                        Originally posted by 5A757C7E69567A757A7C7E767E756F1B0 link=1249003655/24#24 date=1249102844
                        “Mistakes will be made,” he wrote “but if a person is essentially right, the mistakes he or she makes; is not as serious in the long run, as the mistakes management willmake if its dictatorial and undertakes to tell those under its authority: exactly how they must do their job”

                        (William McKnight, 1941, President 3M, Management philosophy that helped make risk-taking and innovation possible.)
                        Great advice from a much respected past President of a great innovative company - just Google for Post-it Notes to see how this policy paid off.

                        I worked for 3M Australia from 1960 to 2000 and can vouch for the fact that they really practiced what they preached

                        Comment


                        • #27
                          Re: EM6910 pressure gauge stopped working...bitter coffee!


                          My two month old seal had a nick just like the one in this photo. I rang SB and they asked for a copy of my receipt and sent me a new seal

                          I noticed the nick during a cleaning session end decided to have it replaced even though it hadnt yet caused any problems.

                          Comment


                          • #28
                            Re: EM6910 pressure gauge stopped working...bitter coffee!

                            Originally posted by 133C3537201F333C3335373F373C26520 link=1249003655/14#14 date=1249029779

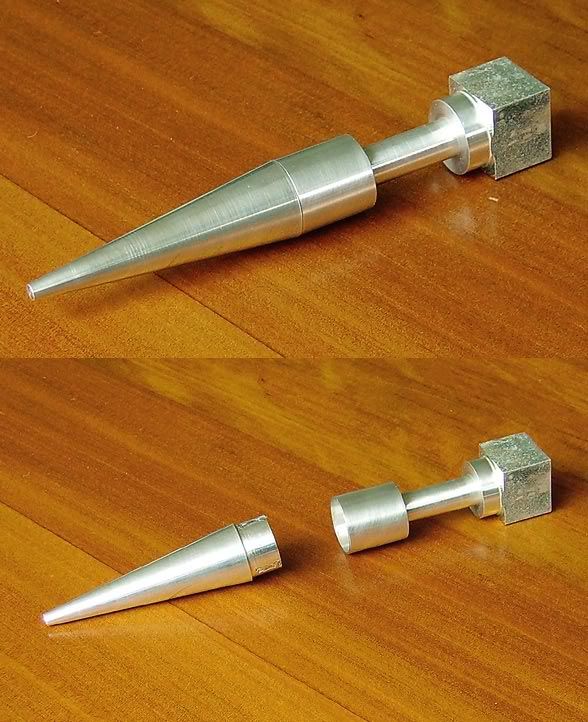

                            Now when are you going to post the Lathe

                              here ya go.







                            [media]http://www.youtube.com/watch?v=FZOA1zTI-fA[/media]  [media]http://www.youtube.com/watch?v=BBZ3jbJT1-U[/media]

                            Comment


                            • #29
                              Re: EM6910 pressure gauge stopped working...bitter coffee!

                              Originally posted by 44485B5D5B4051290 link=1249003655/27#27 date=1249180531
                              AngerManagement wrote on 31. Jul 2009 at 18:42:
                              Now when are you going to post the Lathe



                                here ya go.
                              Bugger Bugger...

                              I knew I should have been more definitive in my wording and not left you an out...


                              My eyes have just swelled up and the envy is oozing form all body orifices...


                              I say it with passion and with respect.


                              Your a right BASTARD [smiley=tekst-toppie.gif]


                              When Metal working upgradeitius hits... I want first dibs...

                              Comment


                              • #30
                                Re: EM6910 pressure gauge stopped working...bitter coffee!

                                been looking at these ^^^^ on the Gbay

                                whats it like ? i have seen the forums on them but have not done a lot of investigating.
